860 MK2

Category:
WIDTH

10 HP

DEPTH

32 MM

Price

$260

Voltage Controlled Filter

Overview

The System80 860MK2 is a 10 HP updated version of our popular JOVE filter. It is a Eurorack interpretation of the multi-mode filter found in the Roland Jupiter-6, a 1980s analogue polysynth.

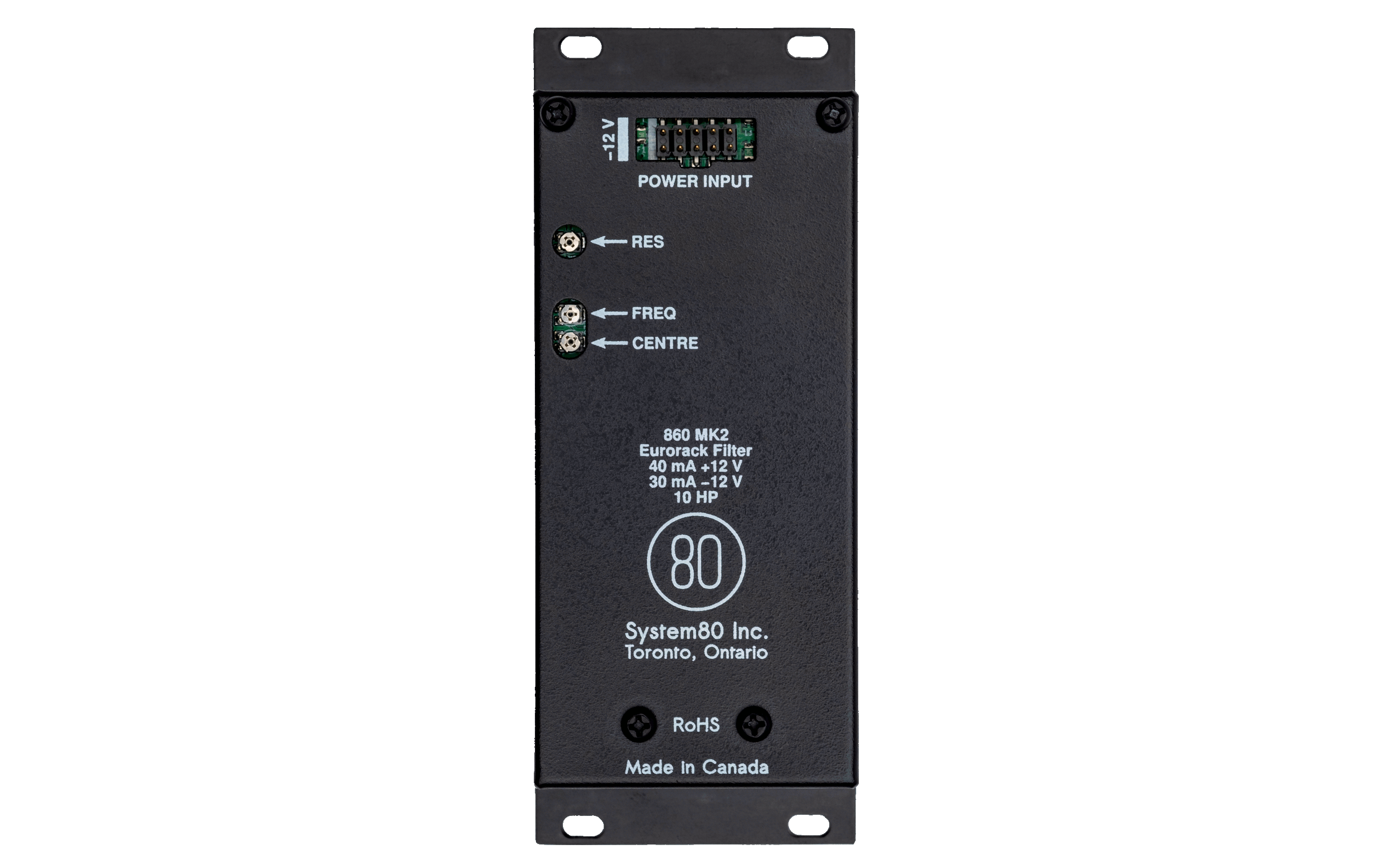

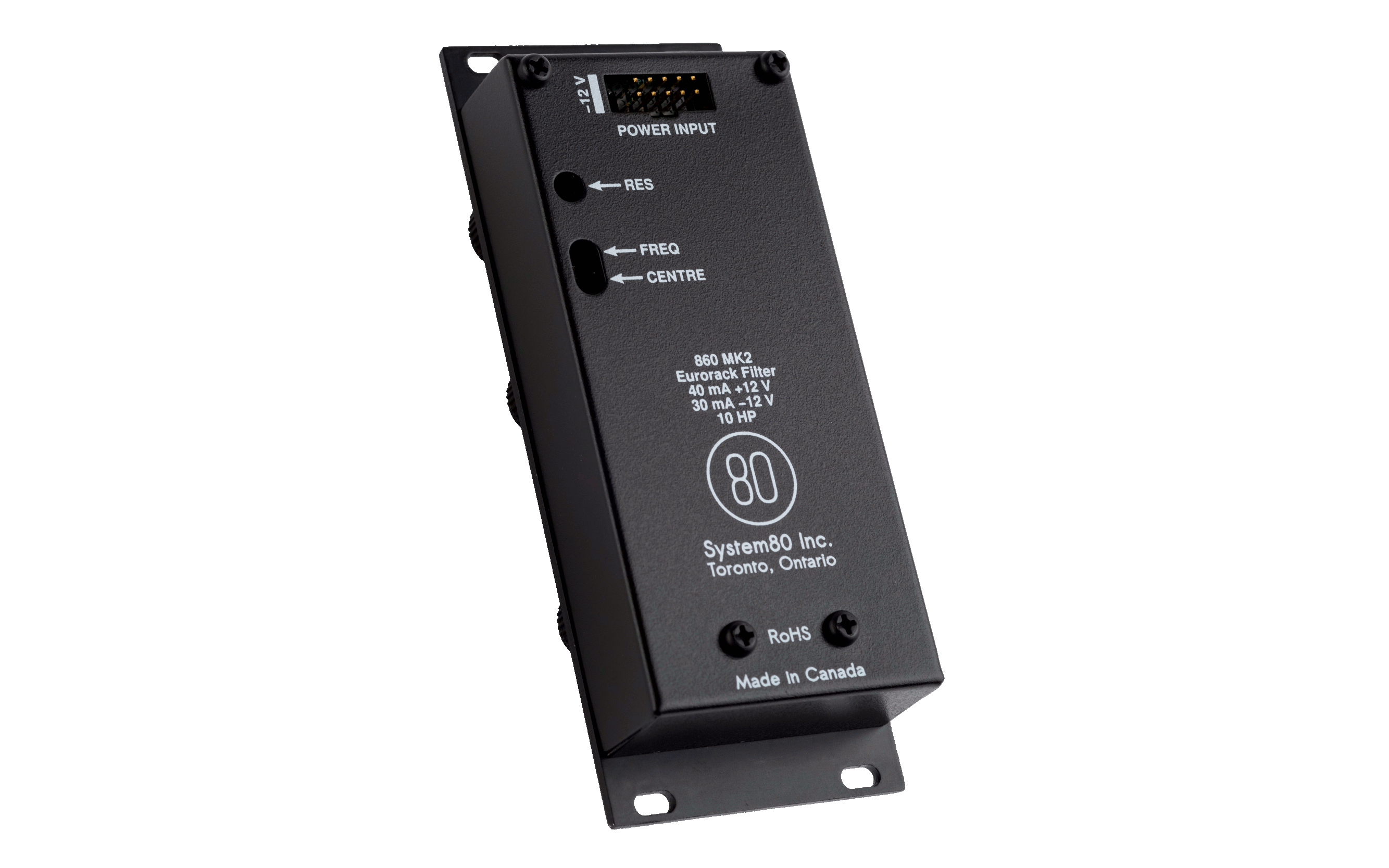

The 860 MK2 replaces both the 14 HP JOVE and the 8 HP 860 MK1.  It has been updated and improved in several ways, including memory recall of the filter mode, a quad OTA filter core, internal voltage references, a fully attenuated 2 input audio mixer, and a steel back cover.

Features

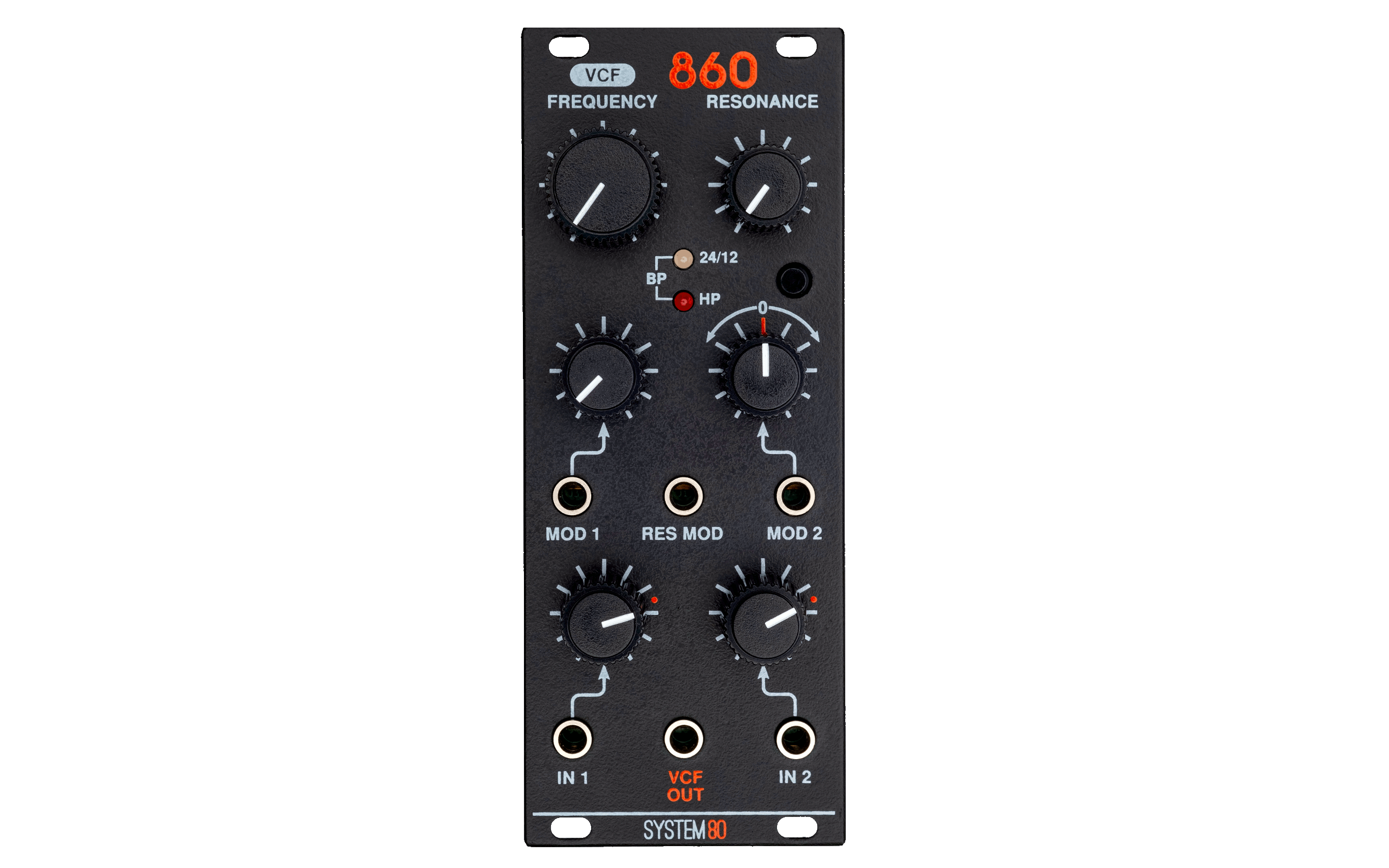

  • 4 modes: 24 dB low pass, 12 dB low pass, band pass and high pass
  • Filter mode recalled between power cycles
  • 2 input audio mixer
  • 2 frequency CV inputs, one bipolar and one unipolar
  • 1 resonance CV input, non-attenuated

Download User Guide

Demos



The 860MK2 is sonically identical JOVE. Please see JOVE’s product page for more audio demos and videos.

Buy

The 860 MK2 is available to purchase through our global dealer network. We sometimes have stock for direct purchase.  If there’s an active buy link on this page then you can order direct from us. Please note that we usually prepare items for shipping on the weekend, so your item will ship the week following your order. We will contact you if there is a delay in shipping your order. Prices are in US dollars ($USD).

USA and INTERNATIONAL ORDERS: please include a phone number with your order, it is required for the customs declaration.

Our modules are manufactured in Toronto, Canada using local labour for panel fabrication, robotic circuit board assembly and final hand assembly and testing.
